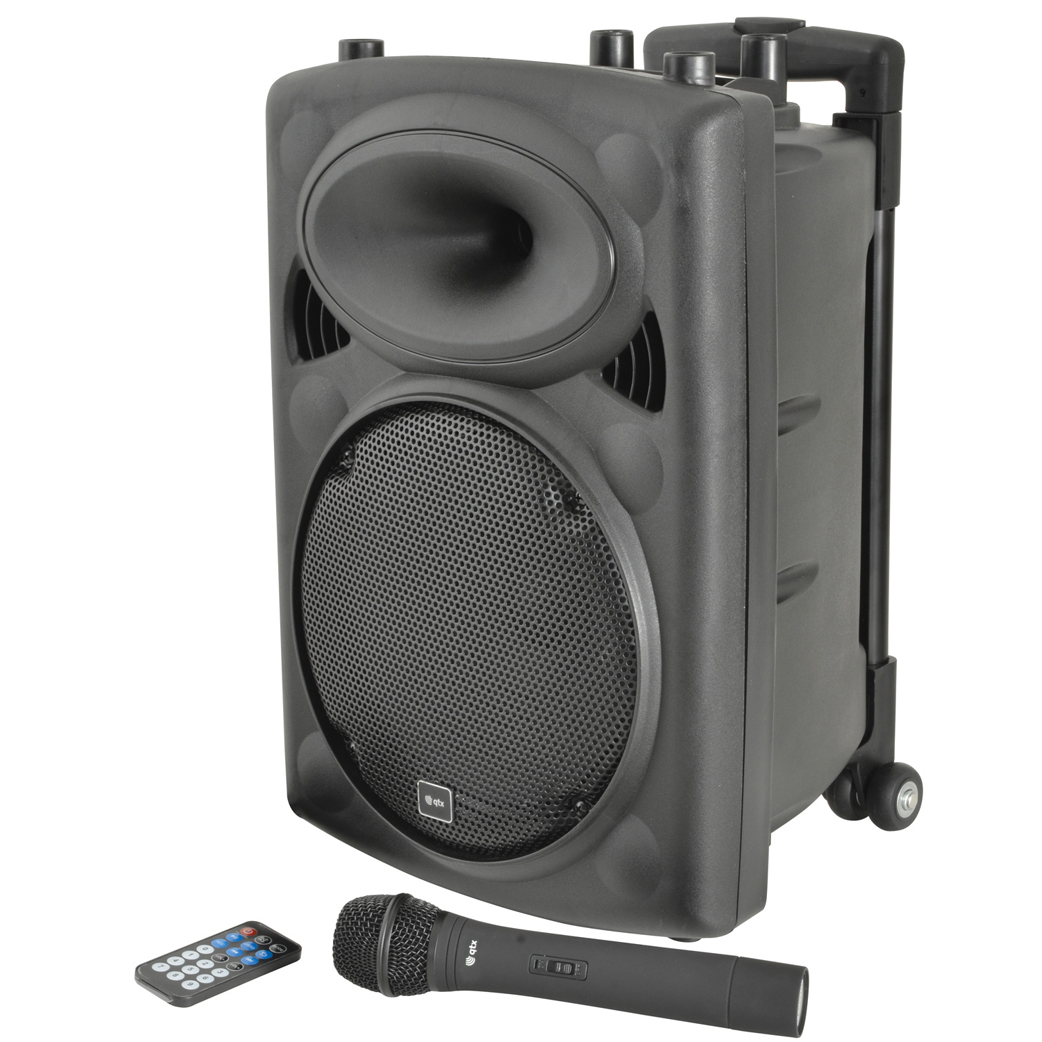

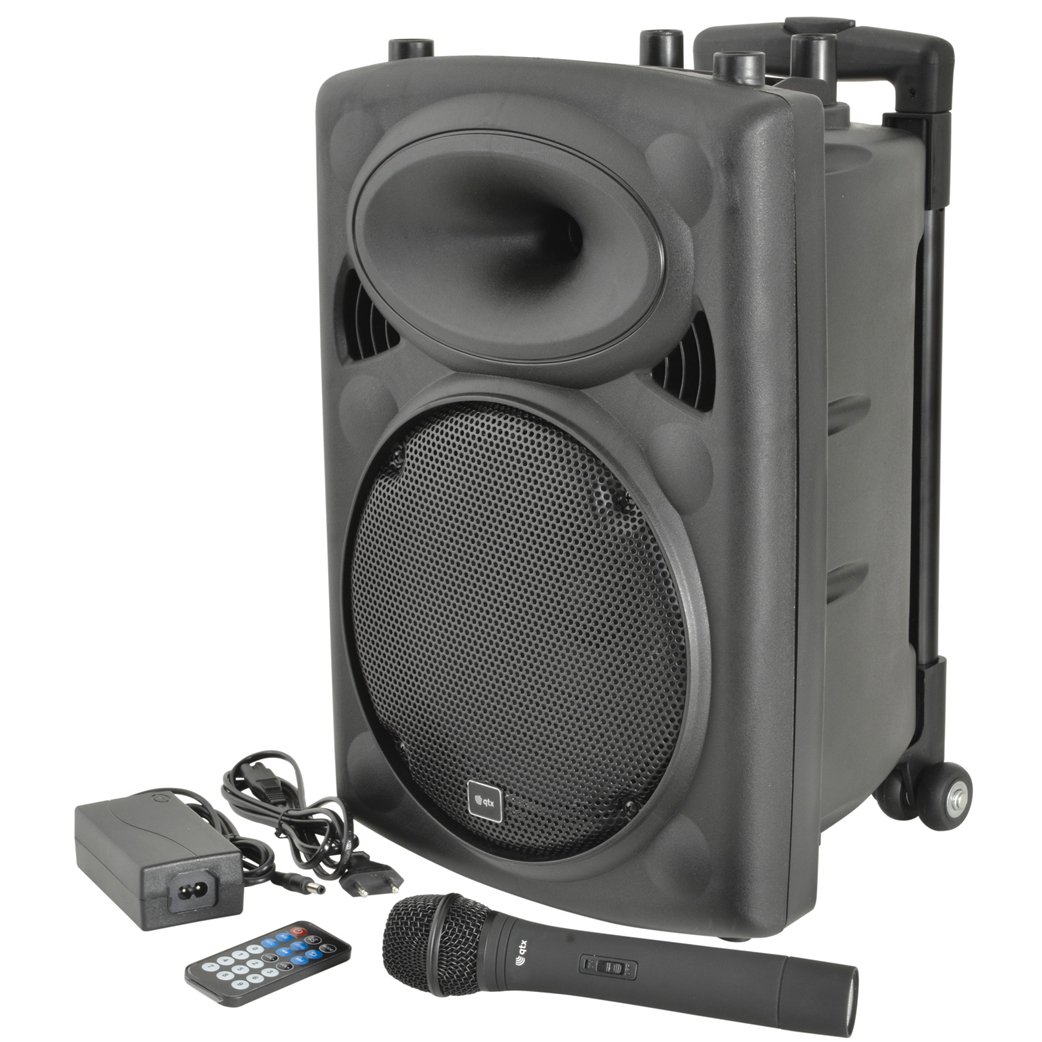

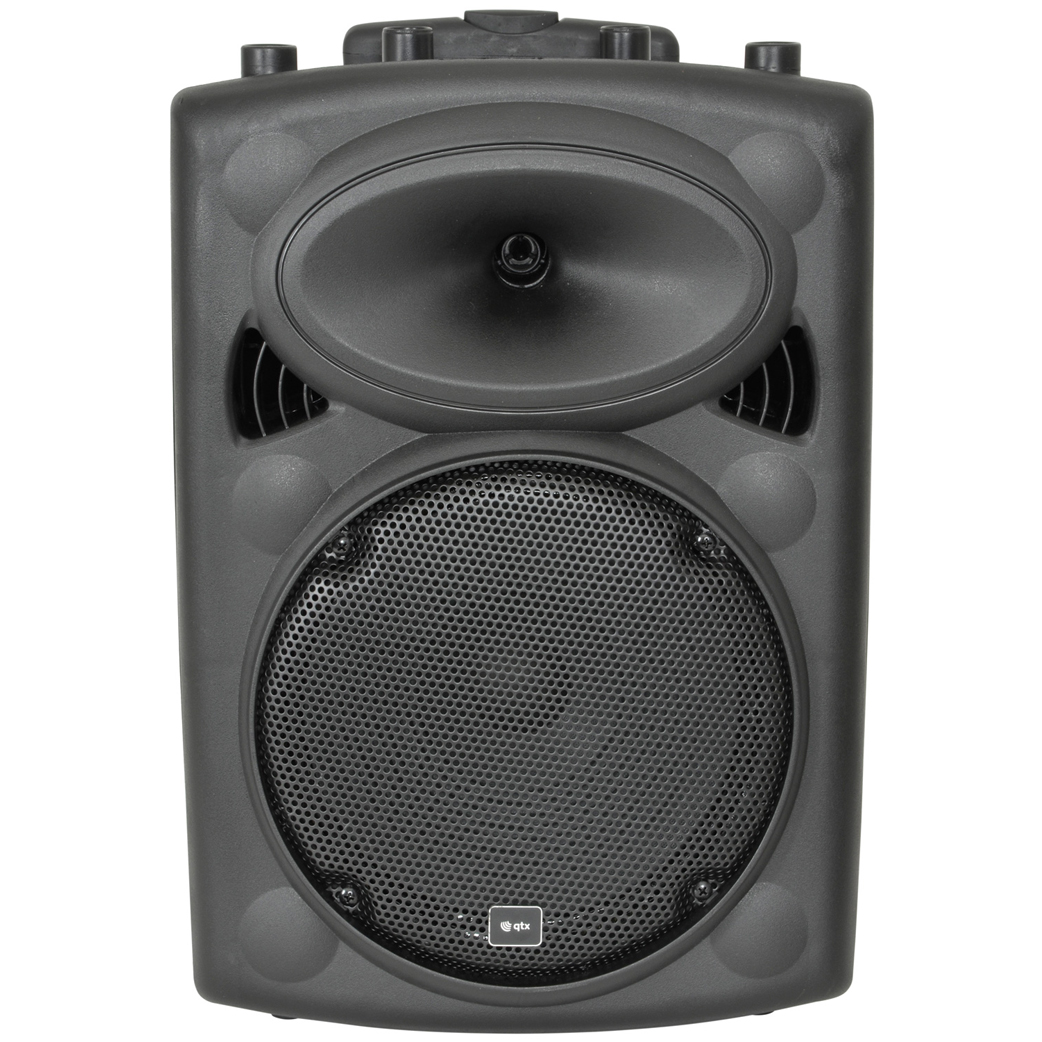

Compact portable PA unit based on the QR speaker cabinet. Built-in amplifier operating from mains or internal rechargeable battery powering a main driver and compression driven horn unit.

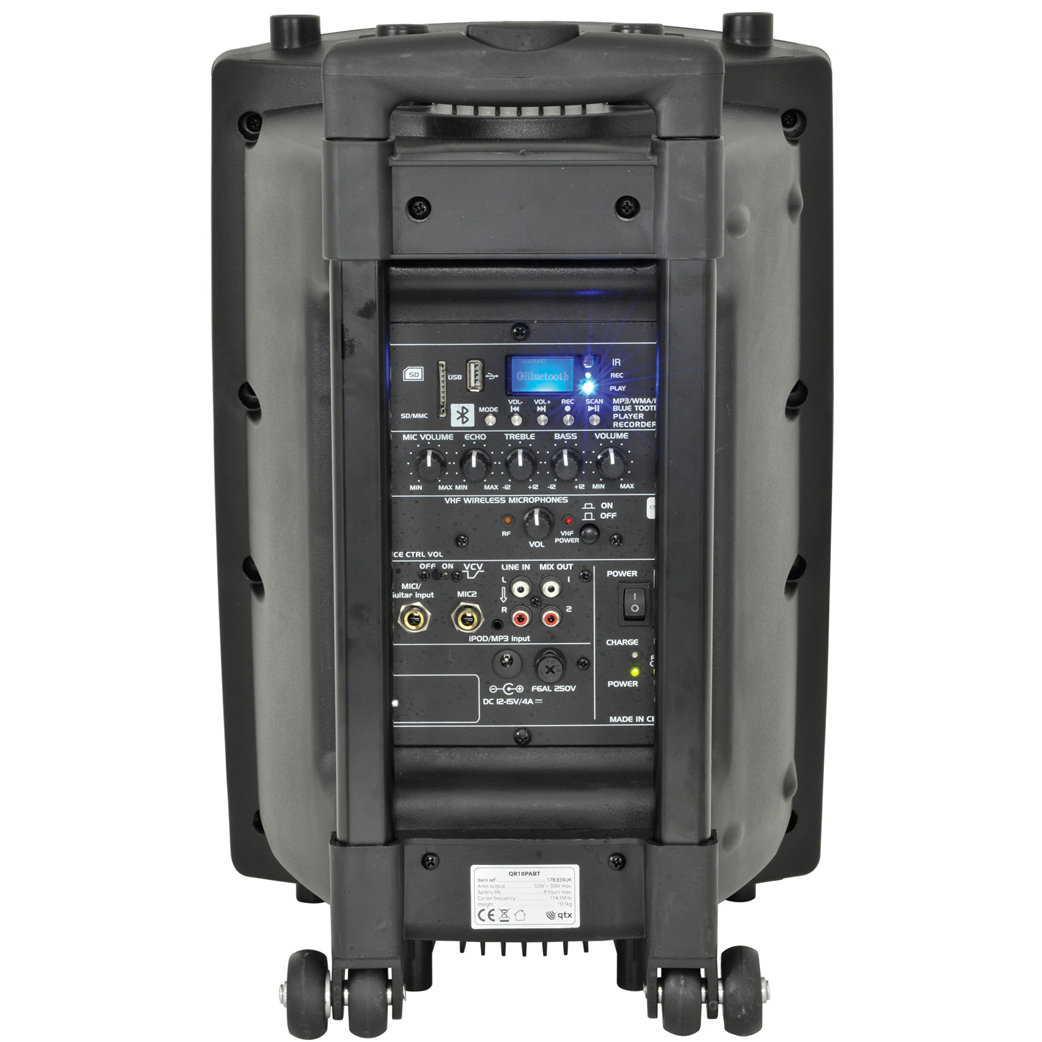

One VHF handheld wireless microphone is included with the receiver built into the mixer/amp section at the rear along with a further two wired mic inputs, auxiliary line input and integral USB/SD/FM media player with record function.

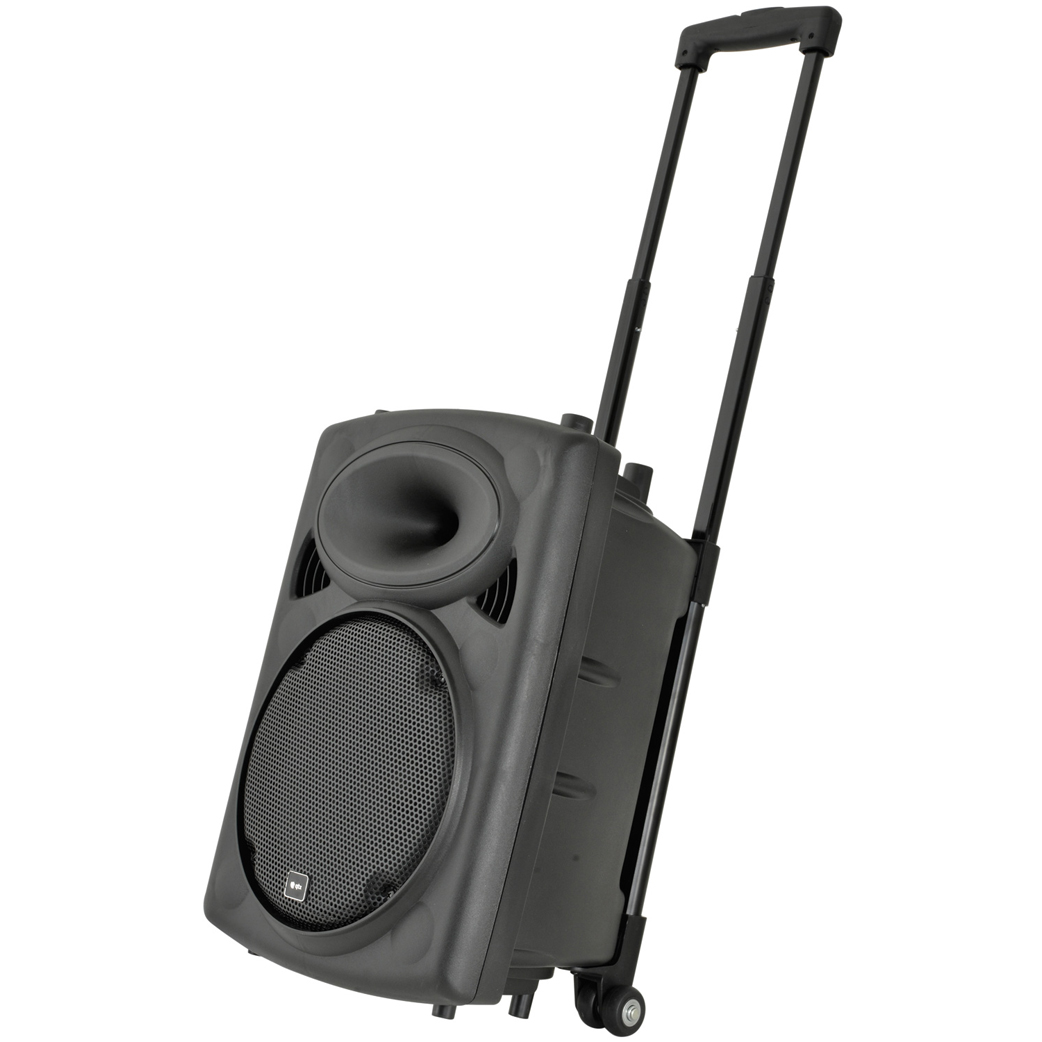

A B/T receiver is also built into the media player to enable pairing with a smartphone or tablet for wireless audio playback. A retractable trolley handle and rear wheels provide easy portability.

• VHF handheld microphone included
• Echo effect for microphones
• Integral USB/SD/FM player with record feature and remote
• Mains/rechargeable operation
• Integral 35mm pole mount
• Built-in trolley facility
• Switchable VCV 'mic override' function
• B/T wireless pairing
• Optional VHF neckband microphones available (MX178891)

qtx product code: 178.839UK

• Weight 9.1kg
• Dimensions 290 x 400 x 230mm
• Main driver 200mmØ (8")
• Power supply Internal battery or 12/15Vdc @ 3A mains adaptor (supplied)
• Amplifier : output 50 + 50W max.
• Battery life Up to 8 hours
• Controls MIC.1/guitar, MIC.2, Echo, Bass, Treble, Master Volume & VHF mic volume, VCV
• Bluetooth version 4.0
• Inputs Mic.1/guitar, Mic.2 (6.3mm jack), Line In (L+R RCA), AUX (3.5mm stereo jack)
• Carrier frequency 174.1MHz
